LC (unit: kg): 30kg WD (unit: mm): 25mm

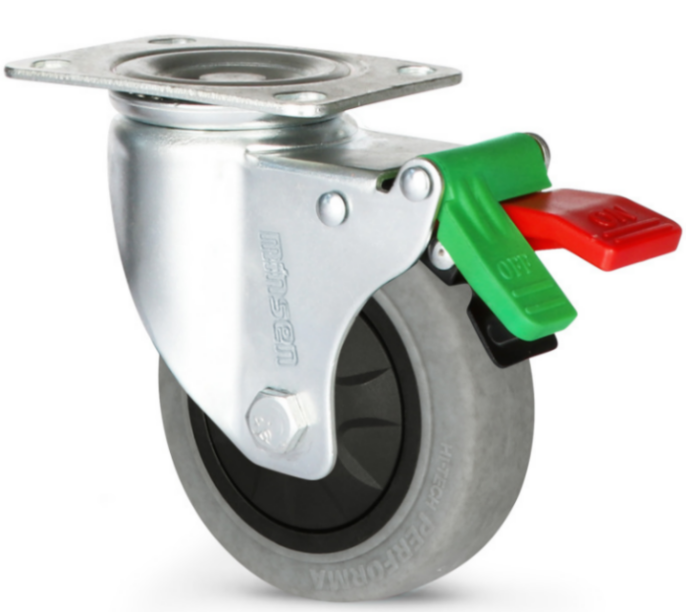

Name: 31 Medium Single Axis Conductive TPR Wheel
Type: Mobile/Fixed/Full Brake/Side Brake
Product size: 3 inches/5 inches/6 inches
Product usage: clean room/clean room/precision instrument, etc.
Features: Protects floors from static electricity/corrosion
Wheel material: Conductive synthetic rubber
| Availability: | |
|---|---|
| Quantity: | |
| Product name | Wheel material | Wheel diameter (mm) | Wheel width (mm) | Installation height (mm) | Turning radius (mm) | Braking turning radius (mm) | Base plate size (mm) | Hole spacing (mm) | Aperture (mm) | Recommended load (kg) |
| 4 inch activity | Conductive elastomer | 100/4' | 32 | 129 | 85 | 95X70 | 74X46 | 8.5 | 120 | |
| 4 inch side brake | Conductive elastomer | 100/4' | 32 | 129 | 85 | 95X70 | 74X46 | 8.5 | 120 | |
| 4 inches fixed | Conductive elastomer | 100/4' | 32 | 129 | 95X70 | 74X46 | 8.5 | 120 | ||
| 4 inch full brake | Conductive elastomer | 100/4' | 32 | 129 | 85 | 95X70 | 74X46 | 8.5 | 120 | |
| 4 inch hole top activity | Conductive elastomer | 100/4' | 32 | 129 | 85 | 95X70 | 74X46 | Ø12 | 120 | |
| 4 inch hole top side brake | Conductive elastomer | 100/4' | 32 | 129 | 85 | 95X70 | 74X46 | Ø12 | 120 | |
| 4 inch hole top full brake | Conductive elastomer | 100/4' | 32 | 129 | 85 | 95X70 | 74X46 | Ø12 | 120 | |
| 4 inch screw activity | Conductive elastomer | 100/4' | 32 | 129 | 85 | 95X70 | 74X46 | 120 | ||
| 4 inch screw side brake | Conductive elastomer | 100/4' | 32 | 129 | 85 | 95X70 | 74X46 | 120 | ||
| 4 inch screw full brake | Conductive elastomer | 100/4' | 32 | 129 | 85 | 95X70 | 74X46 | 120 |
Traffic light brake design: step on the red brake pad to stop movement; step on the green brake pad to start movement. No damage to wheel surface
Conductive artificial glue: Made of ultra-high-strength plastic core wrapped with thermoplastic super artificial glue and injected with imported conductive materials. It accumulates good conductive properties, effectively eliminates or releases static electricity accumulation, protects anti-static floors from leaving marks on the ground, and resists corrosion from chemicals, acids, water, etc.
Oil-free design: The universal wheel uses an anti-steel wrist double-track oil-proof design to protect the steel balls. It has a larger load-bearing capacity and is more flexible. The surface is electro-galvanized to better prevent rust and corrosion.
Precision single ball bearing: smooth rotation and long-lasting durability
